1. Power system adopts top brand Cummins turbo-charge turbo-charge engine with low speed and high torque. Transmission system uses mining customized hydraulic torque converter and power shift gearbox to ensure its stability and high efficiency.
2. Operating system adopts pilot control to make operation easily and work efficiently.
3. Service brake adopts air over hydraulic oil caliper brake to guarantee its safety and reliability.
4. Exhaust cleaning system is equipped with diesel oxidation catalyst (DOC)and water filtration system, greatly reducing air pollution.
5. Wear-resistant and puncture-resistant tires for long working life.
6. Adopt mature slewing bearing leader slewing structure, hydraulic steering, lower failure rate, easy to maintain.

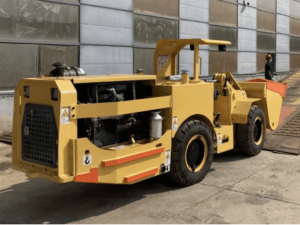

7. The loader has compact structure and small turning radius. It can be used for shoveling, loading,transportation and unloading. It is easy to be operated and has high working efficiency.
| Project | Unit | Parameter |
|---|---|---|
| Bucket Capacity | m³ | 0.6 |
| Rated Load | T | 1.2 |
| Machine Weight | T | 5.2 |
| Max.Digging Force | KN | 40 |
| Max.Tractive Force | KN | 38 |
| Walking Speed | km/h | 0-8 |
| Grade Ability | ° | 14° |
| Overall Dimension(LxWxH) | mm | 4900×1200×1850 |
| Inner turning radius | mm | 1900 |
| Outside turning radius | mm | 3500 |
| Min.Ground Clearance | mm | 185 |
| Wheel Base | mm | 2200 |
| Max.Dumping Height | mm | 1020 |
| Dumping Reach | mm | 785 |
| Engine Model | Cummins | |
| Rated Power | KW | 54 |
| Tire Model | Puncture-resistant tires |
