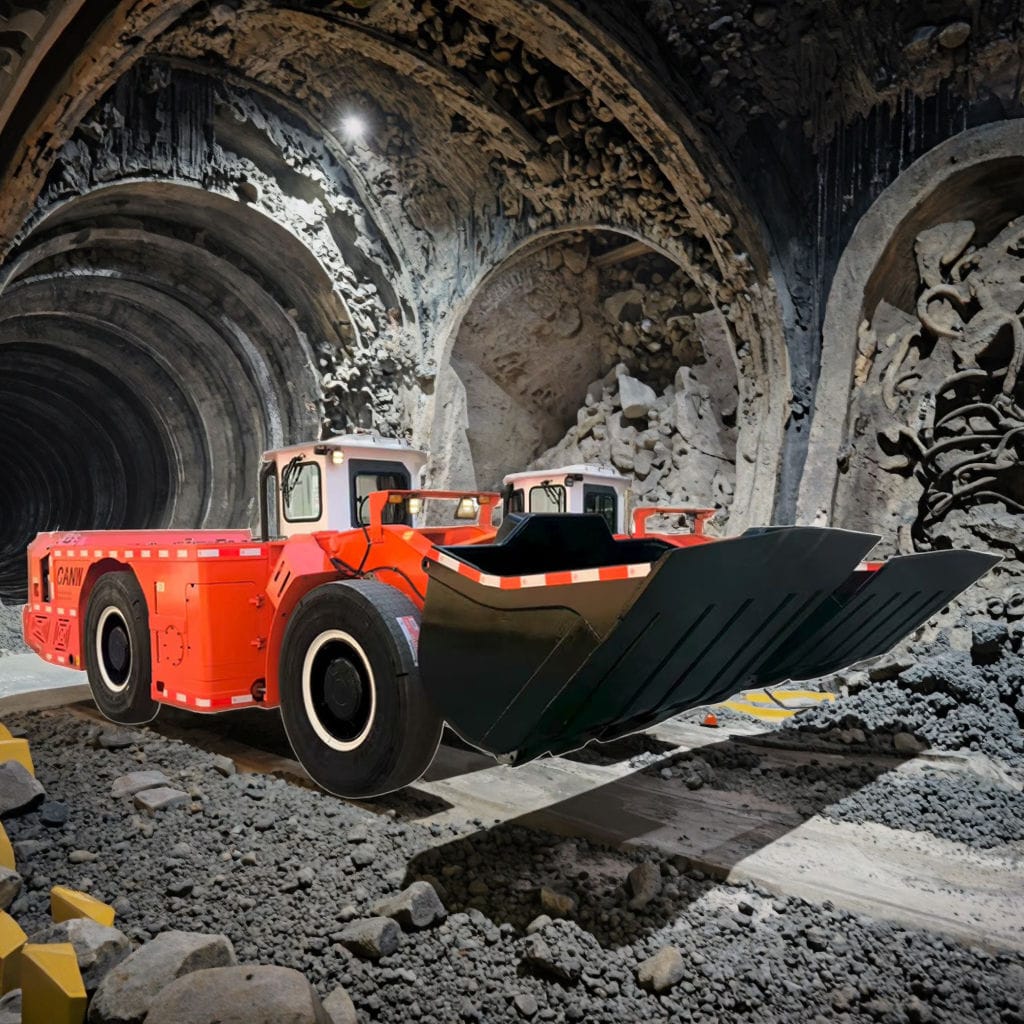

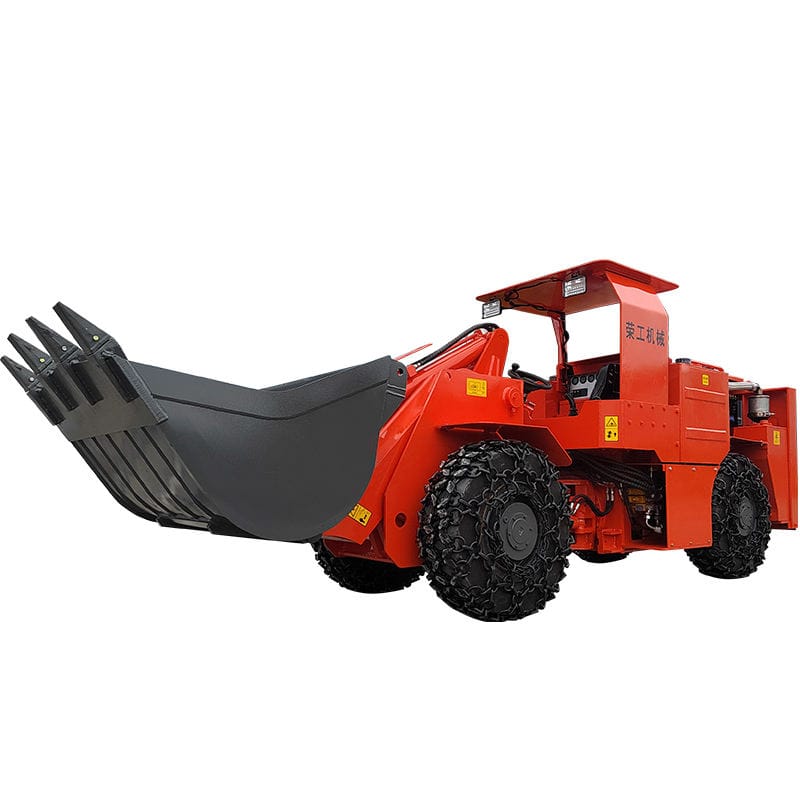

This 0.8 cubic meter wheel loader features a walking system with a mining-specific hydraulic torque converter and gearbox. It is powered by a Yunnei 4100 engine, providing stable power output, high efficiency, and energy savings. It utilizes a technologically advanced swing support structure, dual steering cylinders, and hydraulic steering, resulting in low failure rates and easy maintenance. The axles use heavy-duty wheel-side caliper reduction axles. The working system is hydraulically controlled, and it comes with a built-in water filtration system and exhaust particulate filter. The bucket uses wear-resistant 500 steel. With a self-weight of 5.5 tons, it uses 255/70D406 smooth, wear-resistant, and puncture-proof rubber tires, paired with tire protection chains for increased durability.
| Project | Unit | Parameter |
|---|---|---|
| Bucket Capacity | m³ | 0.8 |
| Rated Load | T | 1.6 |
| Machine Weight | T | 5.5 |
| Max.Digging Force | KN | 55 |
| Max.Tractive Force | KN | 48 |
| Walking Speed | km/h | 0-9.7 |
| Grade Ability | ° | 18° |
| Overall Dimension(LxWxH) | mm | 5150×1280×1850 |
| Min.Ground Clearance | mm | 185 |
| Wheel Base | mm | 2300 |
| Max.Dumping Height | mm | 1200 |
| Dumping Reach | mm | 825 |
| Rated Power | KW | 65 |
| Engine model | Yunnei | |
| Tire Model | 255/70D406 |
