Why Choose the JC50D Skid Steer Loader for Low-Clearance Projects?
Uncompromised Productivity in Confined Spaces

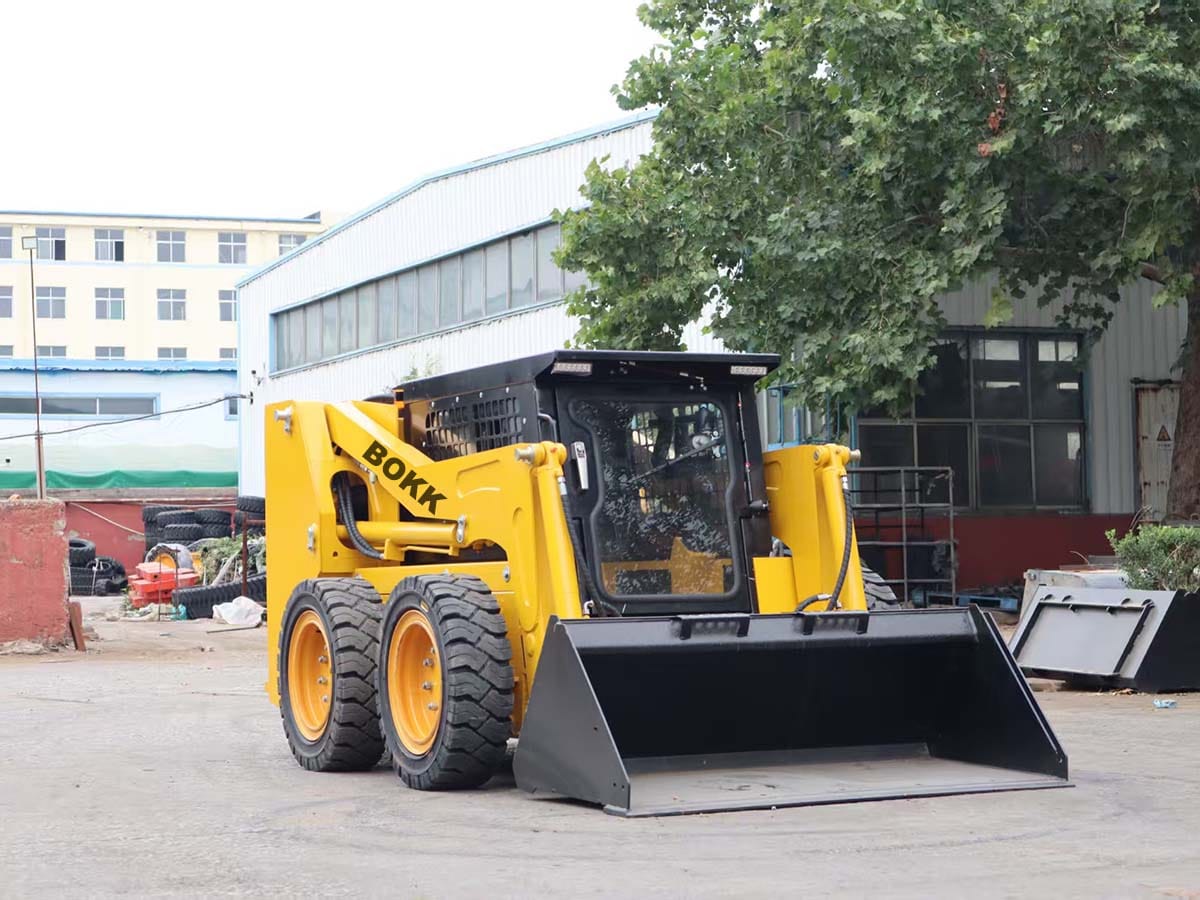

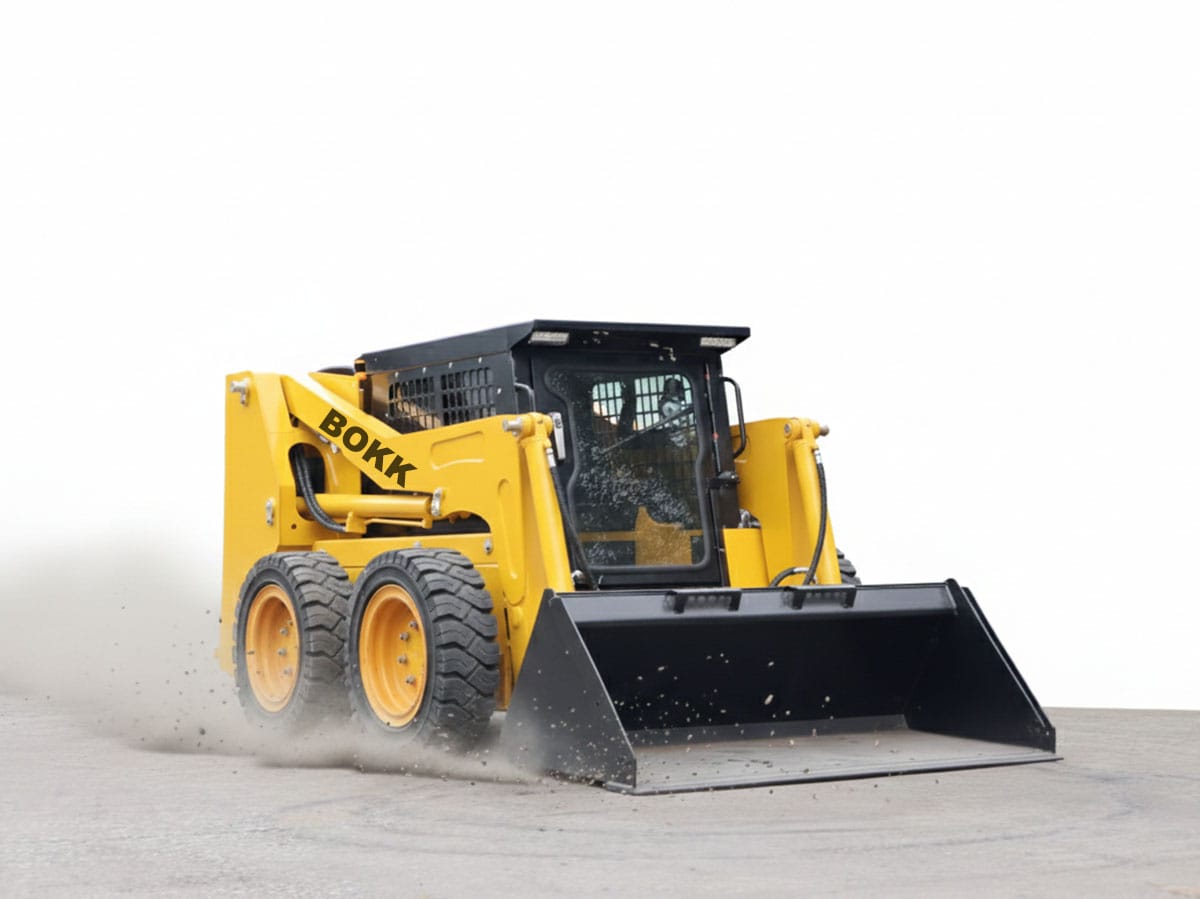

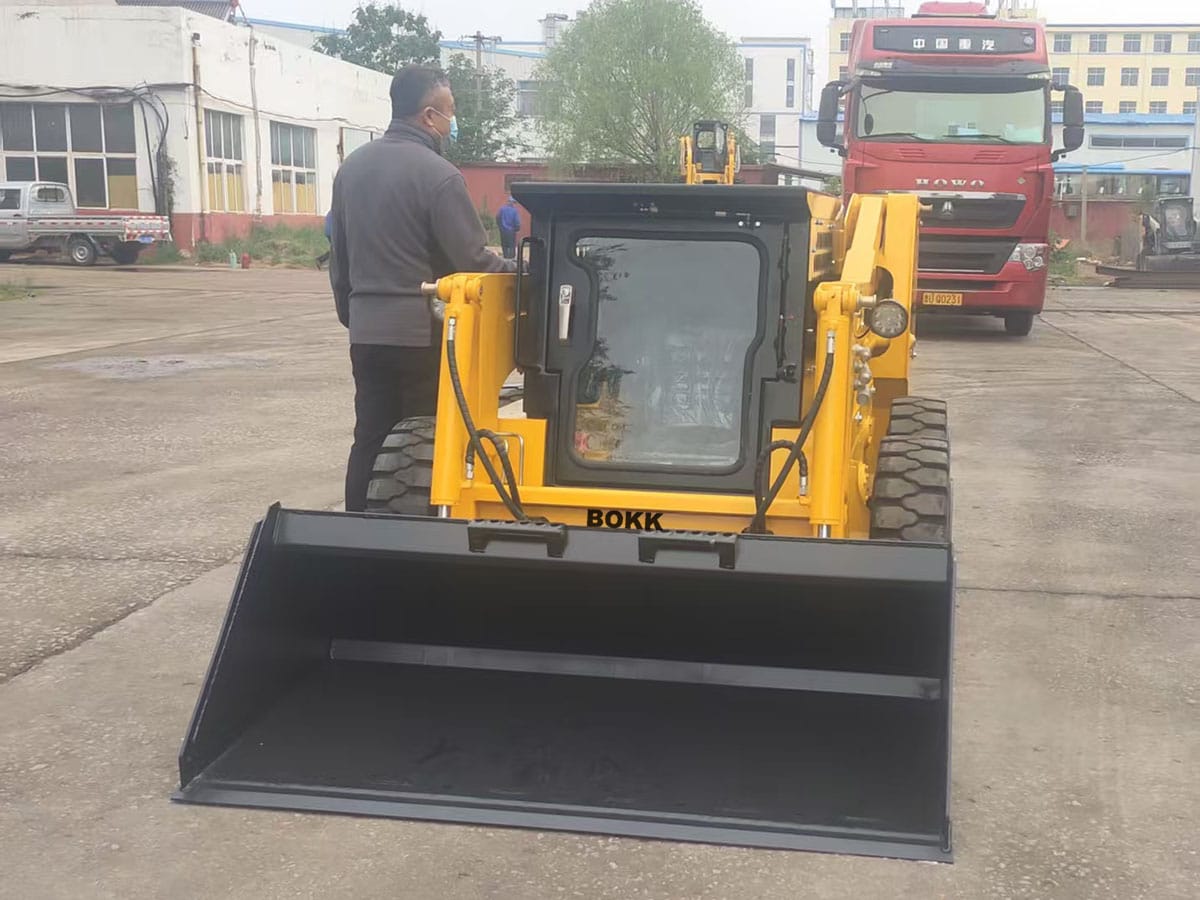

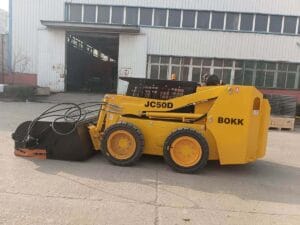

The BOKK JC50D Low-Profile model is engineered for contractors who refuse to compromise on power when working in restricted environments. While standard loaders are often too tall for modern basement renovations or traditional mining tunnels, the JC50D is built to excel in these specific height-sensitive scenarios.
Optimized Low-Clearance Design: The JC50D’s reduced overhead profile makes it the premier choice for underground mining, parking structure maintenance, and interior demolition. It allows for safe operation under low ceilings and through restricted entryways without risking structural damage.
Heavy-Duty 50HP Output: Unlike many compact machines, the JC50D retains a high-torque 36.8kW engine. This ensures it can handle demanding attachments like hydraulic breakers, trenchers, and sweepers with maximum efficiency.

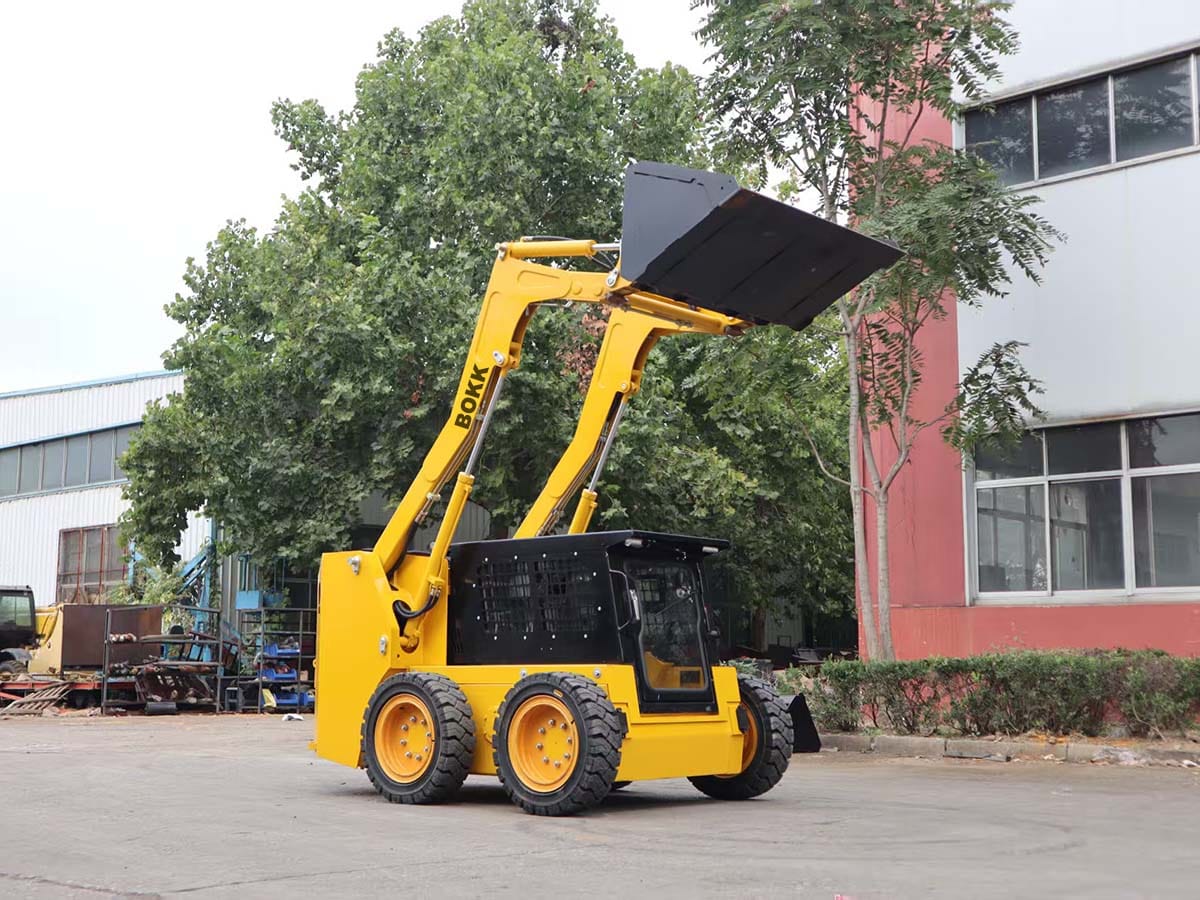

Superior Height-to-Lift Ratio: Despite its low profile, the machine achieves a 2080mm dumping height. This allows operators to load materials directly into high-sided skips and trucks, a critical advantage for urban construction and debris removal.
Rugged 2.8-Ton Stability: A lower center of gravity and a 2800kg dead weight provide exceptional traction and a stable lifting platform, ensuring safety on the uneven or damp surfaces typical of underground work sites.
Technical Data Sheet
JC50D Super Low-Clearance 1.6m cab top
Item Data Dead weight (kg) 2800 Bucket capacity (m³) 0.4 High Flow Flux (L/min) / Rated power (Kw) 36.8 Horsepower(HP) 49.3 Operating load (kg) 750 Tire（track） model 28*9-15 Fuel tank capacity (L) 80 Rated flux (L/min) 75 Max Speed（km/h） 6 A, Overall operating height (mm) 3770 B, Height to bucket hinge pin (mm) 2810 C, Height to top of cab (mm) 1600 D,Height to bottom of level bucket(mm) 2643 E,Without bucket length（mm） 2800 F, Overall length with bucket(mm) 3490 G, Dumping angle at maximum height(° ) 40 H, Dumping height(mm) 2080 I, Dumping reach(mm) 700 J, Rollback of bucket on ground(° ) 30 K, Rollback of bucket at full height(° ) 104 L, Wheelbase(mm) 991 M, Ground clearance(mm) 205 N, Angle of departure(° ) 20 O, Front turning radius without bucket(mm) 1228 P, Front turning radius(mm) 2010 Q, Rear turning radius(mm) 1746 R, Rear axle to bumper (mm) 1208 S, Tread width (mm) 1450 T, Width (mm) 1720 U, Bucket width (mm) 1740
