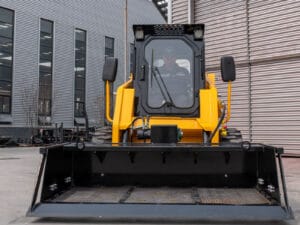

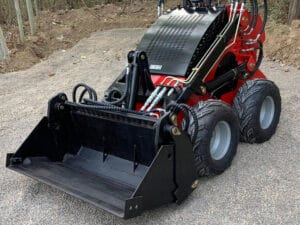

This four-in-one attachment can be used as a bucket for loading, carrying and dumping; as a grapple for handling odd-shaped objects; or for dozing, leveling, and spreading material with the clamshell open.
1. Versatile functionality, suitable for construction sites with complex working conditions.
2. Relatively economical, with lower costs than a six-in-one bucket.
3. Highly adaptable, capable of meeting the needs of most small and medium-sized engineering projects.
| Item | Unit | 60 ＂ | 66 ＂ | 72 ＂ | 84 ＂ |
|---|---|---|---|---|---|
| bucket capacity | m³ | 0.35 | 0.4 | 0.5 | 0.6 |
| Length | mm | 1524 | 1676 | 1828 2 | 2133 |
| Width | mm | 920 | 920 | 920 | 920 |
| Height | mm | 660 | 660 | 660 | 660 |
| Weight | kg | 340 | 380 | 410 | 450 |
| Operating pressure | MPa | 16 | 16 | 16 | 16 |
