Skid steer loader Manufacturer
OEM, Exporter, Global shipping,Made in China

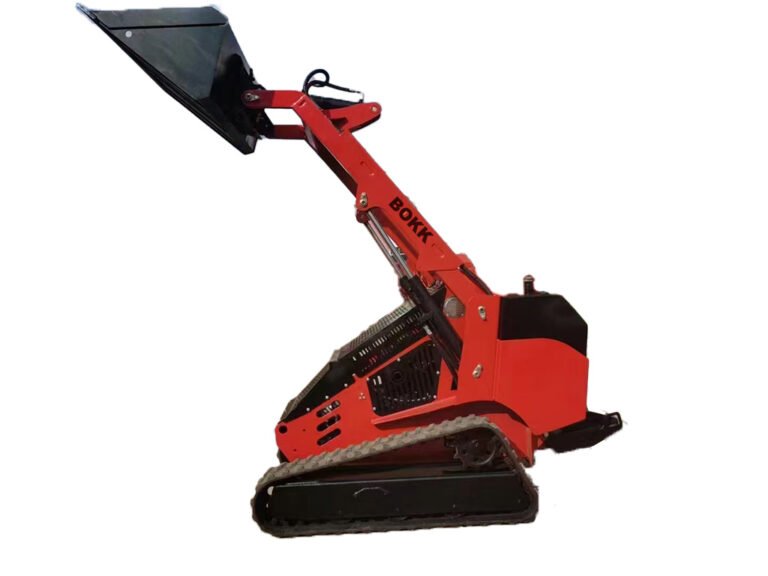

Mini Track skid steer loader
Get into the tight area, small size but powerful
- Working efficiency， Stable quality
- Cost save 30%-50% than famous brand
- 100+ attachements, universal quick-change plugs
- Warranty 1 years or 2000 hours
- Mini track skid steer loader
- Engine : Kubota diesel
- Emission : EPA Tier 4, Euro V
- Power:18.2KW
- Bucket capacity (m³): 0.2 m3 to 0.55 m3
- Operation load (kg): 400kg
- Attachments: Bobcat Quick adjustment
- Custom: Color, Logo, Attachements, Others
Multifunction Attachments
Quality Control
Specification
LY850 Mini Skid Steer Loader
| Item | Data |
|---|---|
| Operating weight(kg) | 1330 |
| Rated load(kg) | 400 |
| Bucket capacity(m³) | 0.2 |
| Max Speed(km/h) | 5.6 |
| Max traction(kN) | ≥12 |
| Max breakout(kN) | ≥7 |
| Lifting time of boom(s) | 7 |
| Engine Manufacturer | Kubota |
| Engine Model | D1105 |
| Engine Rated power (kW/rpm) | 18.2/3000 |
| Engine displacement (L) | 1.123 |
| Engine Emssion Standard | Euro V/EPA4 |
| Overall operating height(mm) | 2800 |
| Height to bucket hinge pin(mm) | 2159 |
| Height to top of cab(mm) | 1685 |
| Height to bottom of evel bucket(mm) | 2831 |
| Without bucket length(mm) | 2165 |
| Overall length with bucket(mm) | 2831 |
| Dumping angle at maximum height(°) | 30 |
| Dumping height(mm) | 1685 |
| Dumping reach(mm) | 611 |
| Rollback of bucket on ground(°) | 30 |
| Rollback of bucket at full height(°) | 103 |
| Wheelbase(mm) | 1149 |
| Ground clearance (mm) | 258 |
| Angle of departure(°) | 29 |
| Front turning radius without bucket(mm) | 970 |
| Front tuning radius (mm) | 1496 |
| Rear tuning radius (mm) | 1496 |
| Rear axle to bumper (mm) | 910 |
| Tread width (mm) | 826 |
| Width(mm) | 1006 |
| Bucket width(mm) | 1166 |
Skid Steer Loaders Work in Industry
Package and Load
Certifcates-CE / ISO/ Patent
Our factory own the complete and mature system to ensure stable quality, which can be proved by relevant third-party authoritative certificates.
We have a high-level technical team, which constantly invents and innovates in combination with customers’ requirements.
FAQ
1, Is 18kW enough for heavy-duty tasks?
While 18kW models are compact, their reinforced transmission and 10mm steel plate bucket allow 8hr/day material handling in farms. For intensive quarrying, we recommend 75kW+ models
2, How to choose skid steer loader engine power?
Medium-Duty compact skid steer loaders (18-75kW) for Urban & Agricultural Use
Heavy-Duty skid steer loaders (75-103kW) for Mining and Large-Scale Projects
